Running Saw Custom Order Product
This equipment cuts materials that can be cut with saw, such as wood, acrylic, and bakelite, to the desired size.It uses 8 ~ 12 inch circular saw blades, and it is possible to fine tune both the blade height, front and back.
It can be freely operated according to work environment by manual and automatic use.
Even if a thick plate is cut by applying a double split auto clamp, it can be cut without being tilted to one side.
Precision LM Guides and rack & pinion gears are used for extremely stable driving.
All of our products can be customized according to your needs and work environment.Specification

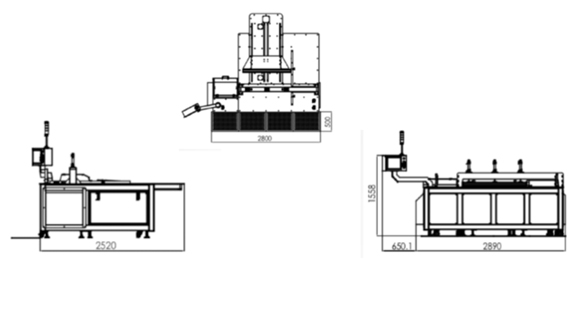

- Equipment Size
2800 x 2980 x 1519mm
- Machining lengthMax 1200mm
- Working thicknessMax 75mm
- Minimum cut width
> 5mm
- Cutting speed
Max 340mm/s
- RPM4200 rpm
- Drive systemServo motor + Ballscrew
- Control systemPLC control system
Mechanical design focus
| Details | |
|---|---|
| Met switch | Step1 alarm buzzer, Stop spinning saw |
| Step 2 Mains power off | |
| Area sensor | Double safety devices, More than 30mm object detection |
| Door sensor | Stop saw rotation when opening check window |
| Safety cover | Apply safety cover to all sections of the saw |
