EL-10060G CNC

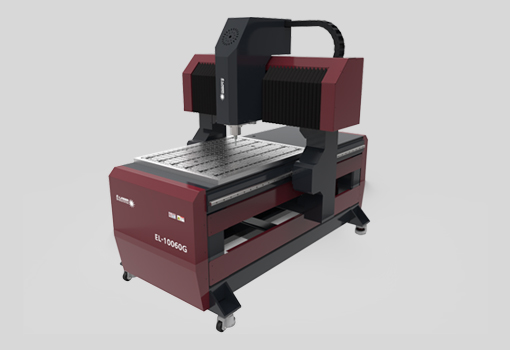

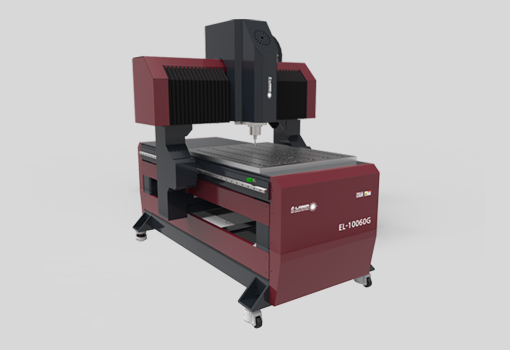

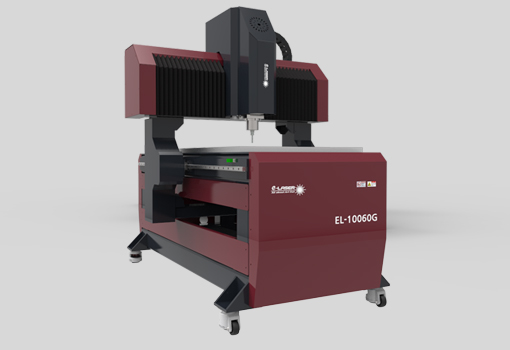

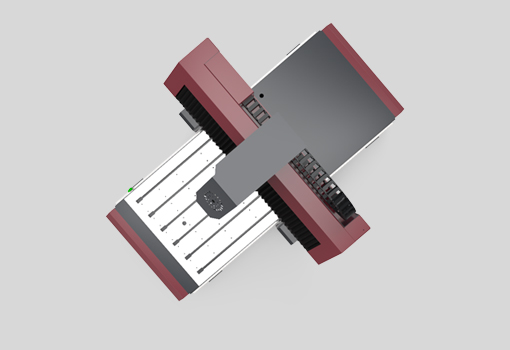

The EL-10060G is a medium CNC machine with a machining area of 1000x600mm. It has excellent durability based on the bed heat treatment process and precision machining process through our direct design, and it is possible to precisely / continuously process metal materials such as aluminum.

It is possible to select the suitable spindle according to the material to be processed and to use the efficient working space by applying the gantry structure. It adopts high performance servo motor as standard and maximizes work stability and efficiency by installing Korean control program. In order to provide user convenience, we provide various types of machined JIG based on years of experience and promise stable technical support after installation of equipment until the first production.

All of our products can be customized according to your needs and work environment.

Quote Contact

Specification

Machining area1000x600x150mm(z)
Table typevT-slot (option: vacuum table)
Operating voltage
AC 220V 60Hz single phase
AC 380V 60Hz three phase
Maximum number of revolutions
~ 50000rpm
Spindle capacity1.1KW~6KW
Drive typeDirect high frequency spindle
ColletER16
Transport motorServo motor
Transport speedMax 12m/min
Transport DeviceBall Screw, LM Guide
Repeatability0.005mm
Accuracy of movement0.01mm
ControllerDomestic Controller

Function

High rigidity frame structure
High rigidity frame structure enhances
equipment stability
Gentry type structure
Gentry type structure for convenient working
environment
T-slot bed applicationConvenient and variety clamping environment
High precision ball screw application
High precision ball screw is used for more accurate
machining quality
High output spindle
High frequency inverter enables high speed
rotation of tens of thousands of RPM
Automatic tool height sensor
Automatically measures the height between the
material and the tool after mounting the end mill
Applying Korean
controller
Various controls such as absolute origin, block skip,
precedent control
One year warrantyOur standard warranty period.
Customizable
Customized development of various jigs and
special spindle applications

Video

Features of equipment

High strength gantry structure

By adopting a high strength gantry structure, stability and convenience of operation are added.
High precision servo motor application

Precision machining is possible by using high-quality precision motors
High precision ball screw application

Use a high precision ball screw. Precision machined ball screws minimize misalignment and minimize overload displacement errors.
Domestic controller applied

By applying the CNC multi-axis controller of Korea, stability of control and localized software are added to the convenience of work.

Option

Variable spindle applicable

You can select spindles that match the characteristics of the job by torque, RPM, and output.
T-slot or Vacuum bed selection

T-slot bed is used as standard and vacuum clamping bed can be selected as an option.
Control system selectable

As a standard, Korean-made controller is applied and high-performance controller such as Siemens, FANUC can be applied according to customer's demand.
Also available for general purpose NC studio.
Custom production possible (special function)

To fulfill the functions required by the customer for special purposes such as Machine Vision Device configuration is possible.
