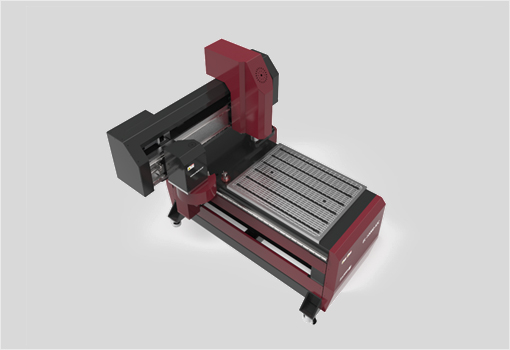

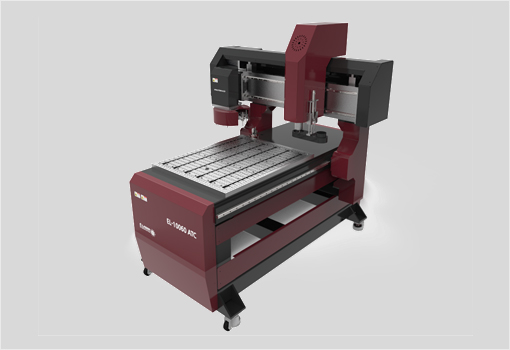

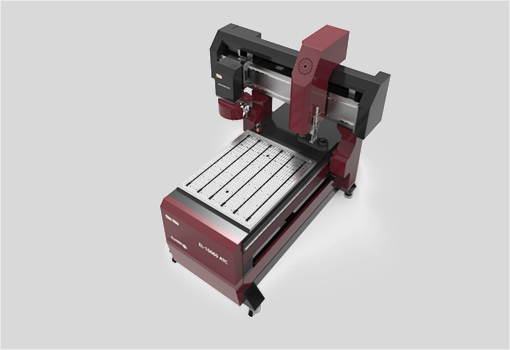

EL-10060 ATC

he EL-10060G is a medium CNC machine with a machining area of 1000x600mm.

It has excellent durability based on bed heat treatment process and precision machining process through direct design by E-laser, and metal material such as aluminum can also be precisely and continuously processed. It is equipped with a turret type automatic tool changer which automatically changes the spindle according to the material to be machined.

By applying a gantry structure, we have enabled efficient working space. It adopts high performance servo motor as standard and maximizes work stability and efficiency by installing Korean control program.

In order to provide user convenience, we provide various types of machined JIG based on years of experience and promise stable technical support after installation of equipment until the first production.

All of our products can be customized according to your needs and work environment.

Quote Contact

Specification

  • Machining area1000x600x150mm(z)
  • Table typevVacuum table for T-slot
  • Power supply

    AC 380V 3P 60Hz

  • Maximum number of revolutions

    ~ 56000rpm

  • Spindle capacity3kW~12kW
  • Drive typeDirect high frequency spindle
  • ColletBT20
  • Transport motorServo motor
  • Transport speedMax 12m/min
  • Transport DeviceBall Screw, LM Guide
  • Repeatability0.005mm
  • Accuracy of movement0.01mm
  • ControllerATC only CNC Korean Controller

Function

  • High rigidity frame structure

    High rigidity frame structure enhances
    equipment stability

  • Gentry type structure

    Gentry type structure for convenient working
    environment

  • T-slot bed applicationConvenient and variety clamping environment
  • High precision ball screw application

    High precision ball screw is used for more accurate
    machining quality

  • High output spindle

    High frequency inverter enables high speed
    rotation of tens of thousands of RPM

  • Automatic tool height sensor

    Automatically measures the height between the
    material and the tool after mounting the end mill

  • Automatic tool changer (ATC)

    Turret ATC application

  • Applying controller made in Korea

    Various controls such as absolute origin,
    block skip, precedent control

  • Operational knowhow Education

    Experts Conduct Customized Training
    for Your Customers

  • Customizable

    Customized development of various jigs and
    special spindle applications

  • One year warrantyOur standard warranty period.

Video

Features of equipment

  • Applied automatic tool changer (ATC)

    Turret type ATC is applied, which enables faster and more precise tool change than linear ATC

  • High precision servo motor application

    Precision machining is possible by using high-quality precision motors

  • High precision ball screw application

    Use a high precision ball screw.
    Precision machined ball screws minimize misalignment and minimize overload displacement errors.

  • T-slot or Vacuum bed selection

    A T-slot bed is used as a base and an optional vacuum clamping bed can be selected.

Option

  • Variable spindle applicable

    You can select spindles that match the characteristics of the job by torque, RPM, and output.

  • Select Clamping Environment

    Applies T-slot / Vacuum as a standard.
    Only Vacuum or T-slot can be selected as an option.

  • Control system selectable

    As a standard, Korean-made controller is applied and high-performance controller such as Siemens, FANUC can be applied according to customer's demand.
    Also available for general purpose NC studio.

  • Custom production possible (special function)

    It is possible to configure the device to implement the functions required by customers according to special purposes such as various jigs.

Material processing samples

  • Stone

  • Plastic

  • Metal

  • Wood and Natural Materials
