Vision registration cutting Module FA system

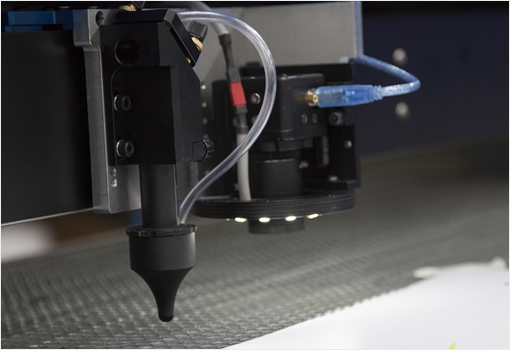

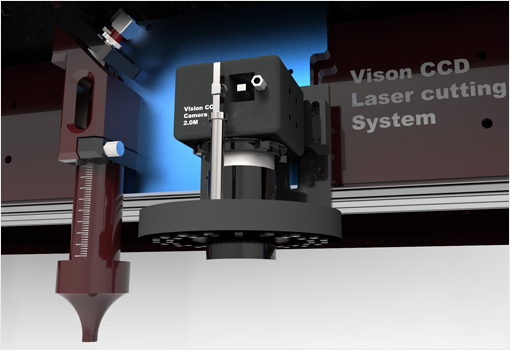

It is equipped with Vision CCD camera in laser equipment or CNC equipment, recognizes outer reference mark and automatically recognizes cutting line and cuts it.

If you print together only the registration marks, the camera automatically recognizes the marks. It corrects the cutting line automatically by detecting the angular deviation during recognition, image sagging when sticking, distortions occurred during printing and bonding process.

It can be installed as an option in the laser equipment of E-laser EL-1390LKM / EL-1290LK / EL-7040LK / EL-1810LK / CNC ,etc .In addition to our equipment, it can be mounted in any shape according to customer's demand.

Quote Contact

Specification

  • Vision camera1.3 / 3.0 / 5.0 maga pixels Monochrome / Color Camera
  • lensBasic 8mm lens
  • Control boardVision only PCI or USB
  • CAM programdedicated program
  • Operating temperature0~50℃
  • Applied equipments

    our company's equipments
    (EL-7040/1290/1810/1390 / CNC etc.)

Video

Sequence of the work

  • 1. Add a registration Outline mark to the printout

  • 2. Run the program and recognize near the first registration Outline mark

  • 3. Auto recognition of remaining registration Outline mark of Vision camera

  • 4. Automatic cut data correction after laser cutting

  • 5. Finished workpiece cutting
