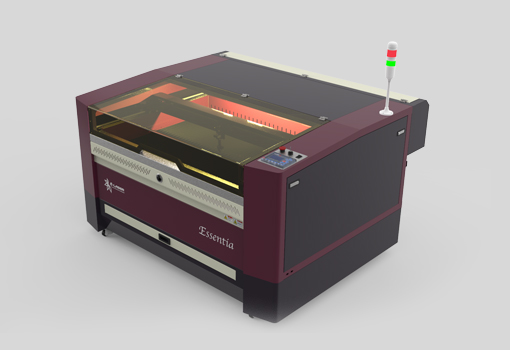

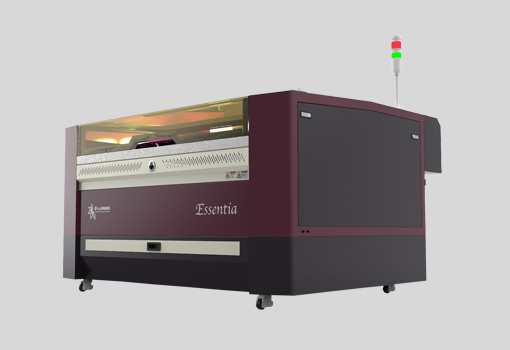

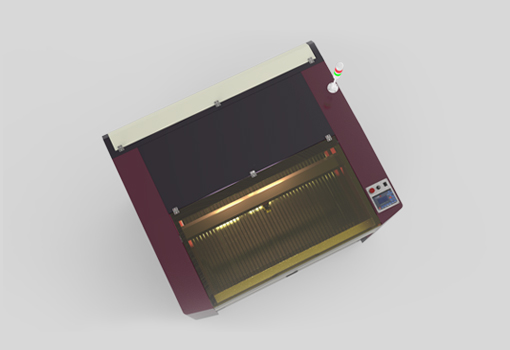

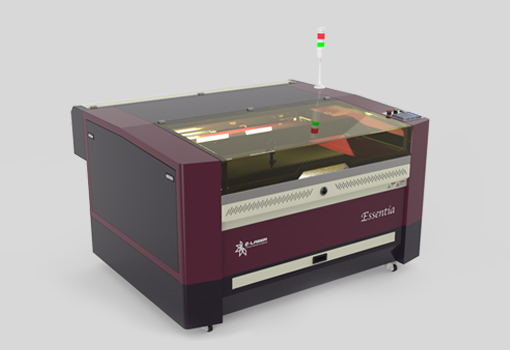

EL-1390LK

The EL-1390LK is a 2019 all new change model with E-LASER's multi-year technology.
We take full advantage of direct design and production, and respond immediately to the functions required by the user.
This equipment has a wide processing area (1300x900) and is a non-metal dedicated machine that can be used for non-metallic cutting and marking / metal marking.

E-LASER's proprietary W.A.B.E technology has been applied. (Option) ACS (Anti Corrosion System) structure which protects the equipment against harmful gas operation is adopted. Dual LM Guide maximizes precision and durability. In addition, it is designed to prevent the risk of fire by shutting off the laser power when the flame is generated for more than 3 seconds.(option)

The laser oscillator can be selected from 80W to 400W CO2 laser depending on the working purpose.

All of our products can be customized according to your needs and work environment.

Quote Contact

Specification

Machining area1300 X 900 mm
Maximum machining speed
900mm/s
Resolution0.025mm
Repeatability0.01mm
CAM programE-Laser Cut 8.0
Data input methodUSB interface direct connection, USB memory
Supported computer
Operating system
Window 7 or later Windows10
Maximum cutting thickness
< 30mm (acrylic) - Dependent on laser source power
Character processing
Minimum size
English:1.5mm x 1.5mm /
Korean, Chinese:3.5mm x 3.5mm
Laser
RF ( 60w,120w ), DC (150w, 280w )
Data InstructionContents Dedicated language
Power supply
Single phase 100V 50 / 60Hz (exported to Japan) or
single phase 220V 60Hz 2200W (domestic type) or more
Drive systemStep motor

Function

Safety cover
Acrylic cover for hazard prevention during
processing
Precision motor High quality step
LCD Display
Convenient environment by changing job
setting and saving data
Multi language support
Support for multiple languages such as English,
Japanese, German
Convenient Focus alignment
Quick and easy focus alignment with focus tool
ACS SystemAnti Corrosion System for pvc and pomax
Data input methodUSB interface direct connection, USB memory
Application of flame detection sensor (option)
Application of sensor to cut off laser when flame
occurs during processing
Application of W.A.B.E technology (option)
Applying technology to produce high-quality beam
with patented optical technology
kevler beltDurable belt application
Various lasers available RF ( 60w,120w ), DC (150w, 280w )
Customizable
Remodeling and configuring of equipment
according to user's requirement
Warranty for 1 year Our standard warranty period

Video

Features of equipment

Apply safety cover

By attaching a safety cover to the front of the machining area, you can safely check the progress of the work.
Dual LM Guide Structure

Dual LM guides are applied to increase precision in the Beam Pass section.
High accuracy of workpiece is realized.
Application of high durability Kevler belt

Applied Kevlar belt, which is globally recognized.
High-quality and precise machining quality is realized by stable movement of the axis
ACS System Application

The Anti Corrosion System was developed by our company protects the main parts of the equipment, so it is possible to work on materials that have a long life of parts and generate harmful gas.

Option

W.A.B.E. Apply technology

Patented laser optics technology applied.
Significantly reduces beam size to ensure precise machining.
It can be selected as an option.
Vision DOMBO cutting

It is a device that can recognize the image through DOMBO mark by applying CCD camera and perform cutting work.
Optionally selectable.
Select Work Table

Provides a basic aluminum blade.
Various tables according to customer's demand
1. Vacuum table
2. Honeycomb table
3. Aluminum blade
4. Acrylic honeycomb table
Selectable RF type CO2 Laser

Basically DC type glass tube is applied to CO2 laser.
RF type laser according to customer's demand.
It can be selected according to the laser output. 30W ~ 400W can be selected.
