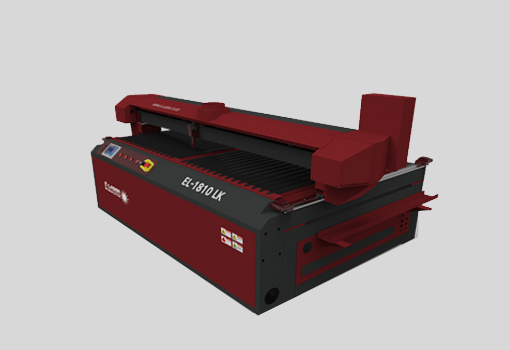

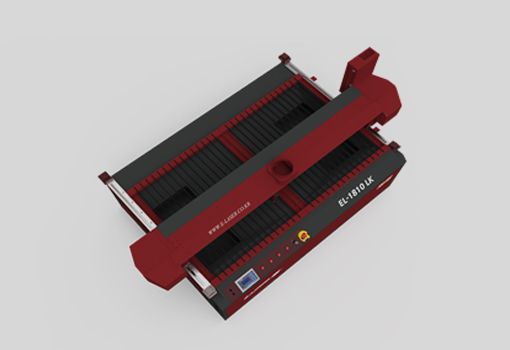

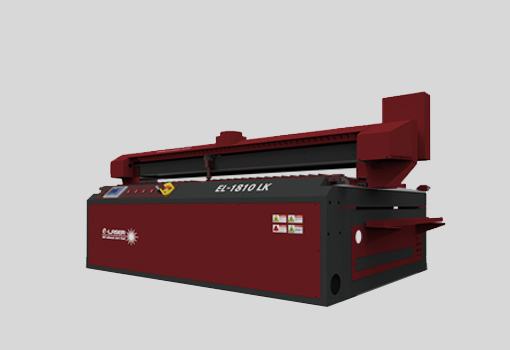

The EL-1810LK is the product of E-laser and reflects the needs of consumers for many years to fully realize the functions required in the field.
It has a wide machining area (1800x1000) corresponding to 3 * 6 and is a non-metal dedicated machine that can mark and cut non-metallic materials It adopts the patented W.A.B.E technology of E-laser (Option) and has ACS (Anti Corrosion System) structure.

You can protect the equipment even in rough work.

The laser oscillator can be selected from 80W to 400W CO2 laser depending on the working purpose. Fiber laser oscillator is also available for metal processing.

All of our products can be customized according to your needs and work environment.

Quote Contact

Specification

Machining area1800 X 1000 mm
Maximum machining speed
60000mm/min
Resolution0.025mm
Repeatability0.01mm
CAM programE-Laser Cut 8.0
Data input method USB interface direct connection, USB memory
Supported computer
Operating system
Windows xp or later Windows10
Maximum cutting thickness
< 15mm (acrylic)
Character processing Minimum size
English:1.5mm x 1.5mm /
Korean, Chinese:3.5mm x 3.5mm
Laser
RF 20W ~ 300W CO2 Laser,
DC 80W ~ 200W CO2 Laser,
Fiber 20W ~ 200W
Data InstructionContents Dedicated language
Power supply
Single phase 100V 50/60Hz (exported to Japan) or
single phase 220V 60Hz 2200W (domestic type) or more
Drive systemStep motor or Servo motor

Function

High strength gantry structure
Gantry structure ensures durability and precision
Precision motor High quality step or servo motor application
LCD Display
Convenient environment by changing job setting
and saving data
Multi language support
Support for multiple languages such as English,
Japanese, German, Chinese
Auto Focus Alignment Convenient Focus alignment
Quick and easy focus alignment with focus tool
ACS SystemAnti Corrosion System for pvc and pomax
Data input method USB interface direct connection, USB memory
Application of flame detection sensor (option)
Application of sensor to cut off laser when flame
occurs during processing
Application of W.A.B.E technology (option)
Applying technology to produce high-quality beam
with patented optical technology
kevler beltDurable belt application
Various lasers availableRF(20~200W) / DC(80~200W) / Fiber(20~200W)
Customizable
Remodeling and configuring of equipment
according to user's requirement
Warranty for 1 yearOur standard warranty period

Video

Features of equipment

High strength gantry structure

By attaching a safety cover to the front of the machining area, you can safely check the progress of the work.
Convenient Software

It supports both vector and bitmap files and supports almost all image files.
We have put various functions in easy to use and provide instruction manuals and training.
Application of high durability Kevler belt

Applied Kevlar belt, which is globally recognized.
High-quality and precise machining quality is realized by stable movement of the axis.
Wide machining area

It has a wide machining area of 1800x1000mm and is suitable for working large workpieces.

Option

W.A.B.E. Apply technology

Patented laser optics technology applied.
Significantly reduces beam size to ensure precise machining.
It can be selected as an option.
Vision CCD Contour cutting

It is a device that can recognize the image through Outline mark by applying CCD camera and perform cutting work.
Optionally selectable.
Select Work Table

Provides a basic aluminum blade.
Various tables according to customer's demand
1. Vacuum table
2. Honeycomb table
3. Aluminum blade
4. Acrylic honeycomb table.
Selectable RF type CO2 Laser

Basically DC type glass tube is applied to CO2 laser.
RF type laser according to customer's demand.
It can be selected according to the laser output. 30W ~ 400W can be selected.
